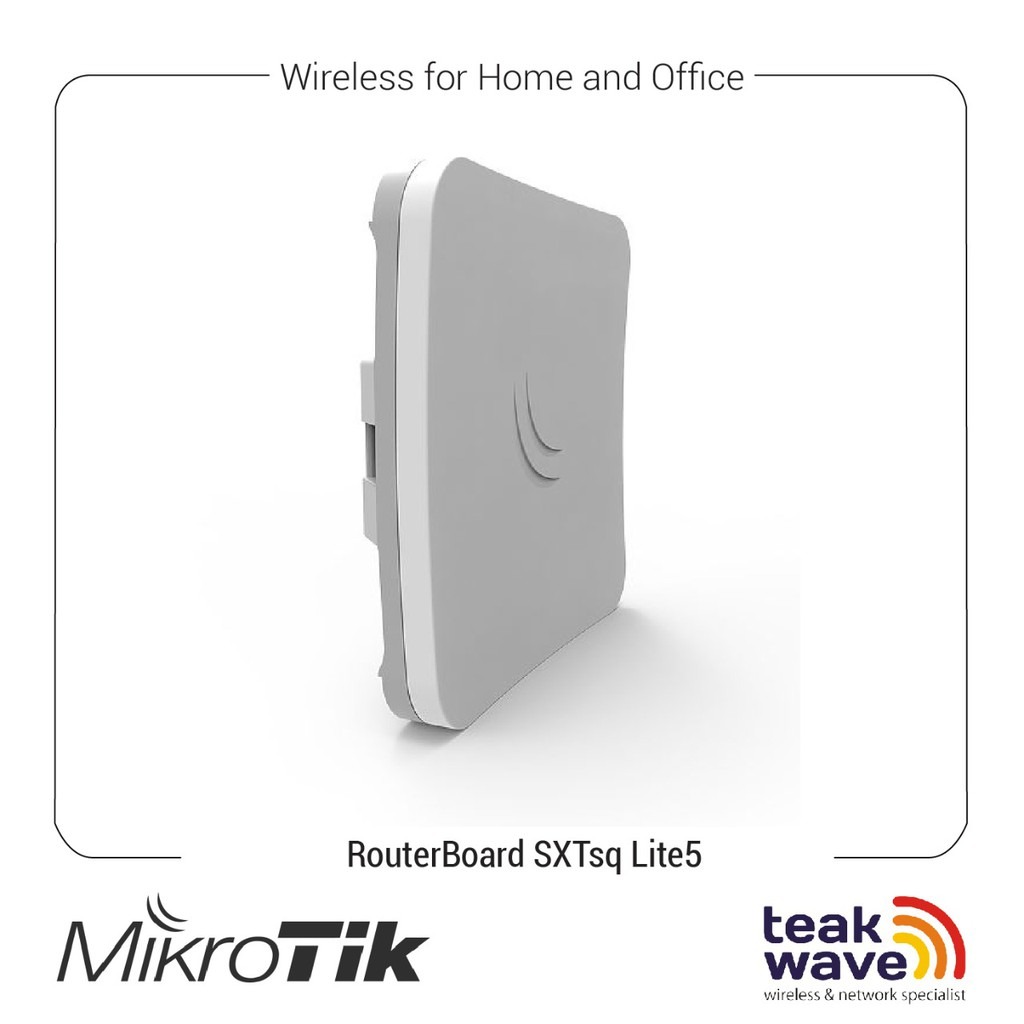

MikroTik RouterBoard SXTsq Lite5 / RBSXTsq-5nD

Spesifikasi:
Details
Product code : RBSXTsq5nD
Architecture : MIPSBE
CPU : AR9344
CPU core count : 1
CPU nominal frequency : 600 MHz
Dimensions : 129x129x34mm
RouterOS license : 3
Operating System : RouterOS
Size of RAM : 64 MB
Storage size : 16 MB
Storage type : FLASH
MTBF : Approximately 100’000 hours at 25C
Tested ambient temperature : -40°C to 70°C

Powering
Details
PoE in : Passive PoE
PoE in input Voltage : 10-30 V
Number of DC inputs : 1 (PoE-IN)
Max power consumption : 6 W
FAN count : Passive

Wireless specifications
Details
Wireless 5 GHz Max data rate : 300 Mbit/s
Wireless 5 GHz number of chains : 2
Wireless 5 GHz standards : 802.11a/n
Antenna gain dBi for 5 GHz : 16
Wireless 5 GHz chip model : AR9344
Wireless 5 GHz generation : Wi-Fi 4

Ethernet
Details
10/100 Ethernet ports : 1

Certification & Approvals
Details
Certification : CE, FCC, IC, EAC, ROHS

Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 20 -80
MCS0 25 -96
MCS7 19 -75

Included parts

24V 0.38A power adapter
Metal ring (one)
PoE injector
