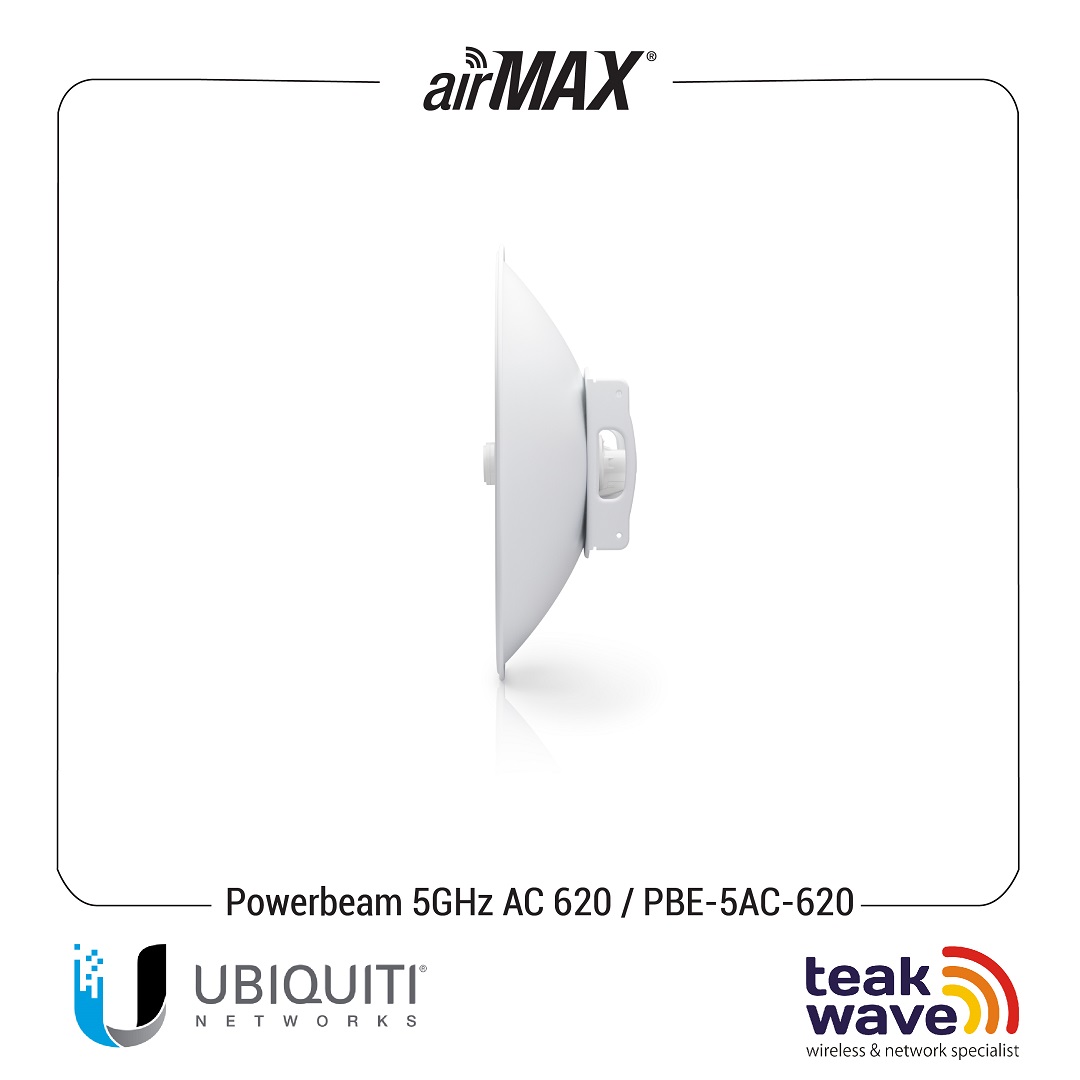

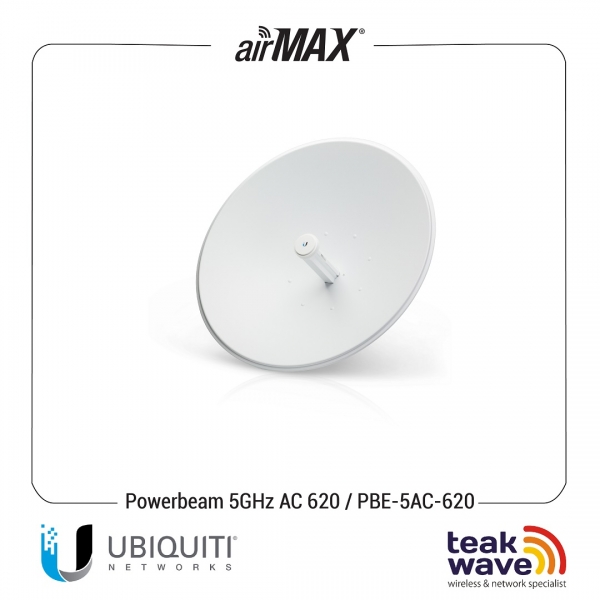

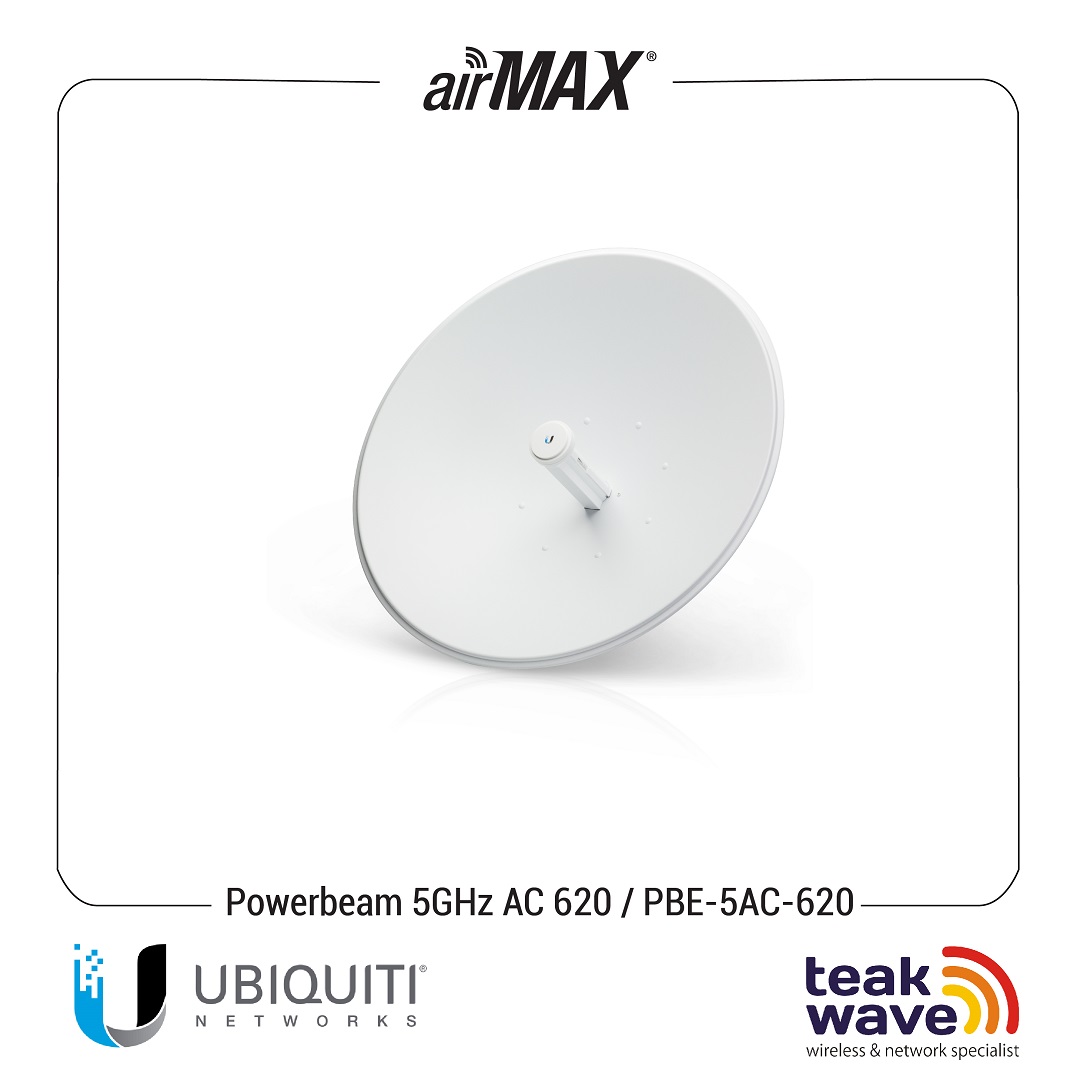

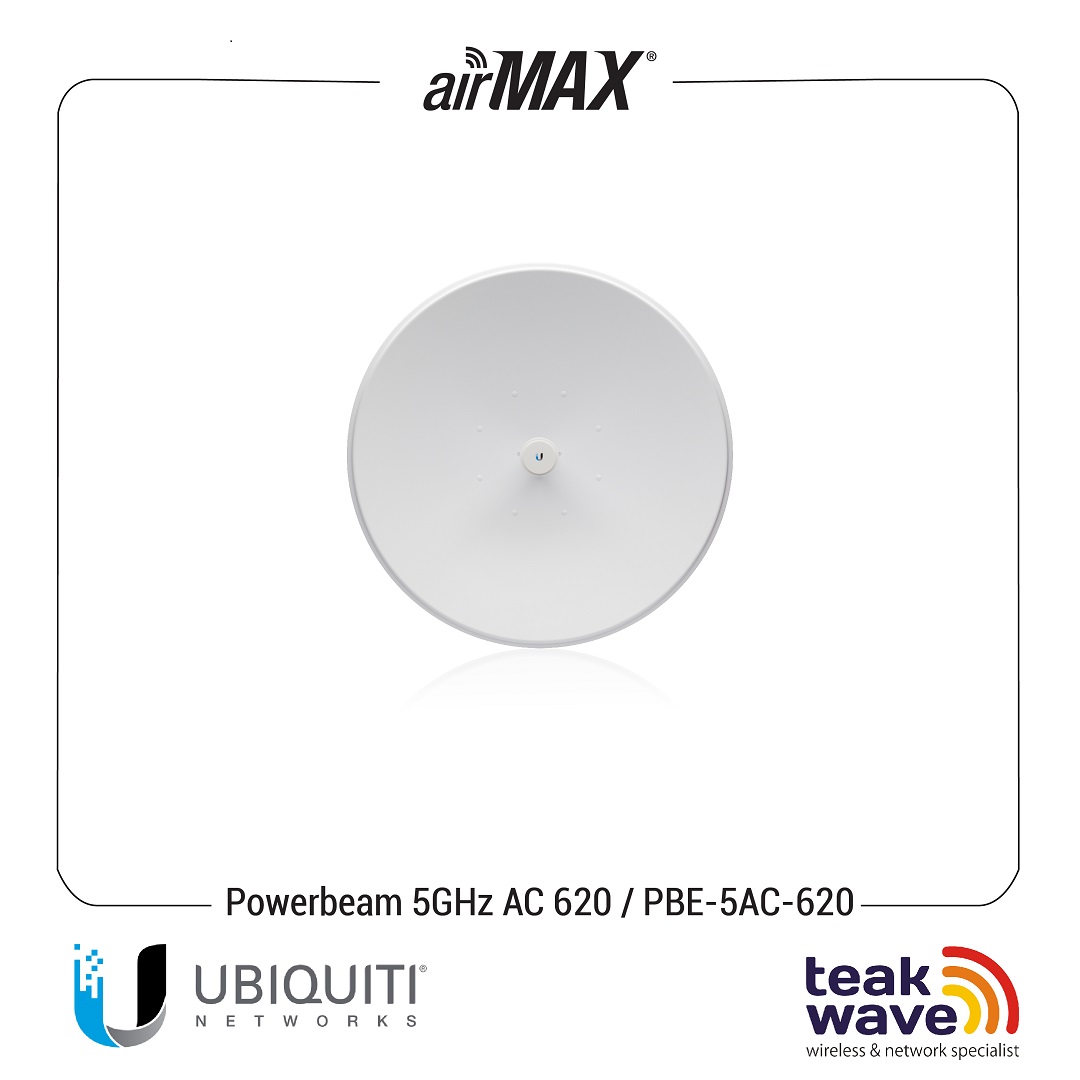

Powerbeam 5GHz AC 620
Rp 3,525,000 Rp 3,324,339
PowerBeam mengarahkan energi RF dalam beamwidth yang lebih ketat dengan fokus pada satu arah secara spasial yang dapat menyaring kekebalan suara. Fitur ini sangat penting untuk sebuah area yang ramai dengan sinyal RF lainnya atau frequensi yang serupa. Desain terpadu Teknologi InnerFeed® Ubiquiti mengintegrasikan radio ke feedhorn antena sehingga tidak perlu menggunakan kabel.
| Spesifikasi Powerbeam 5GHz AC 620 / PBE-5AC-620 | |
| Dimensions | 620 x 620 x 386 mm (24.41 x 24.41 x 15.2″) |
| Weight | 6.400 g (14.11 lbs) |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Max. Power Consumption | 8.5W |
| Power Method Passive | PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20-26VDC |
| Operating Frequency Worldwide | USA: U-NII-1 USA: U-NII-2A USA: U-NII-2C USA: U-NII-3
5150 – 5875 MHz 5150 – 5250 MHz* 5250 – 5350 MHz* 5470 – 5725 MHz* 5725 – 5850 MHz* |
| Gain | 29 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs Atheros | MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 16 MB Flash |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Max. VSWR | 1.6:1 |
| Channel Sizes PtP Mode PtMP Mode | 10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Radome Excluded Radome Included | 1510 N @ 200 km/h (340 lbf @ 125 mph) 1830 N @ 200 km/h (411 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection Air | ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Weight | 6400 g |
|---|
