AirFiber 5XHD
Rp 6,900,000 Rp 6,434,004
AirFiber® AF-5XHD baru adalah LTU pertama dari Ubiquiti yang menawarkan bandwidth saluran yang lebih besar hingga 100 MHz dengan komponen RF yang lebih canggih. Pasangkan AF-5XHD dengan antena Ubiquiti® airFiber X yang kompatibel atau antena RocketDish™ untuk Point-to-Point (PtP) 5 GHz. Tambahkan juga Kit P67 untuk memberikan perlindungan dari debu dan air.
| Spesifikasi Airfiber AF-5xHD / AF-5XHD | |
| Dimensions | 224 x 82 x 48 mm |
| Weight | 350 g |

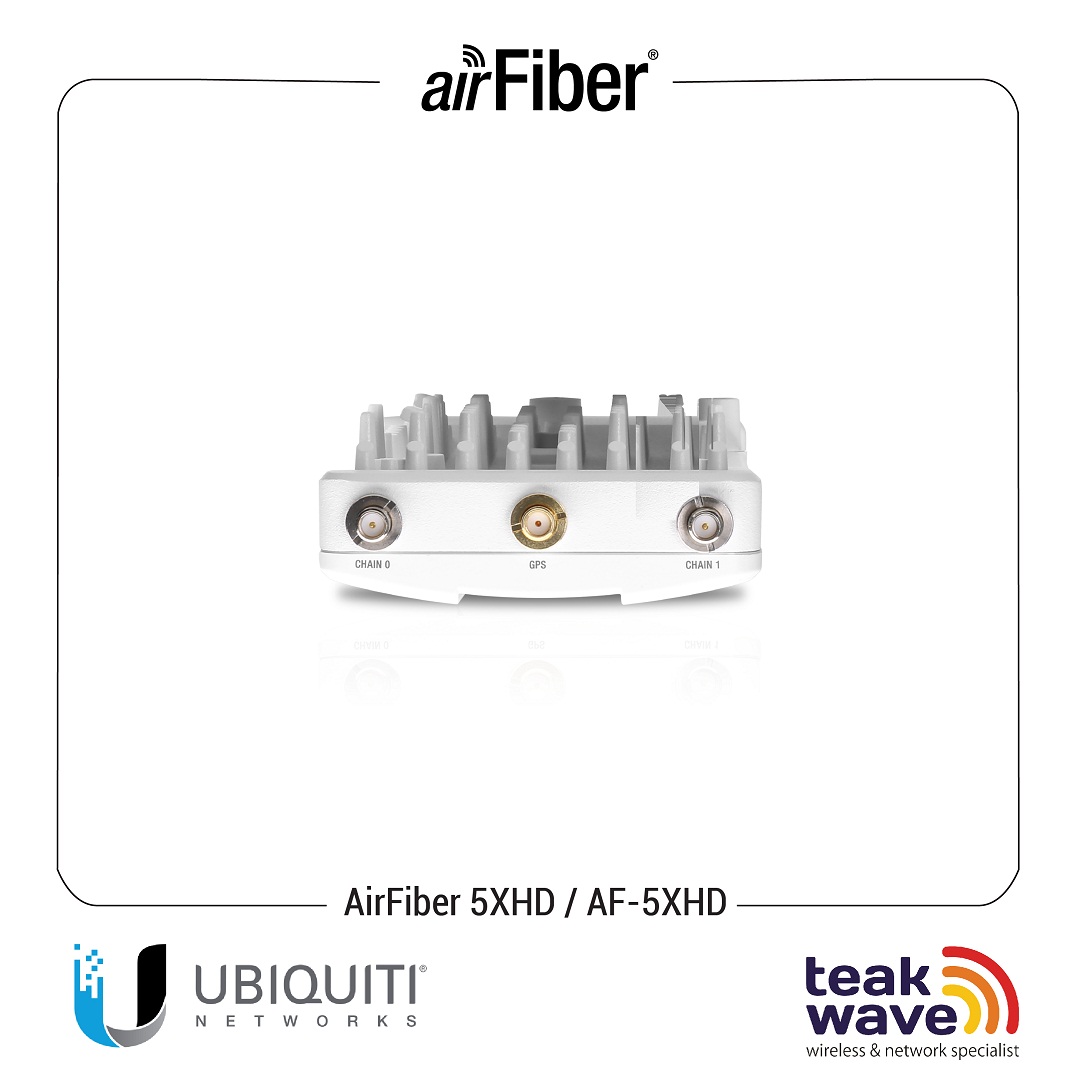

| RF Connectors | (2) RP-SMA Weatherproof (CH0, CH1) , (1) SMA Weatherproof (GPS) |
| GPS Antenna | External, Magnetic Base |
| Power Supply | 24V, 1A Gigabit PoE Adapter |
| Power Method | Passive Power over Ethernet ( Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) ) |
| Max. Power Consumption | 6-12W1 |
| Supported Voltage Range | +18 to +54VDC2 |
| Mounting | airFiber X Mount (Rocket Mount Compatible) |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Weatherproofing | IP673 |
| Certifications | CE, FCC, IC |
| Data Port | (1) 10/100/1000 Ethernet Port |
| Management Port | (1) 10/100/1000 Ethernet Port Bluetooth v4.0 |
| Processor | airFiber LTU IC |
| Maximum Throughput | 1.34 Gbps4, 5 |
| Maximum Range | 100 km4 |
| Packets per Second | 2+ Million6 |
| Latency | 1.5 ms – 3.5 ms7 |
| Encryption | AES-256 |
| OS | airOS LTU |
| Wireless Modes | Master/Slave |
| Frequency Range | 4.8 GHz – 6.2 GHz |
| Max. Conducted TX Power | 29 dBm |
| Frequency Accuracy | < 2 ppm |
| Channel Bandwidth | 10/20/30/40/50/60/80/100 MHz Selectable |
| Weight | 1200 g |
|---|
