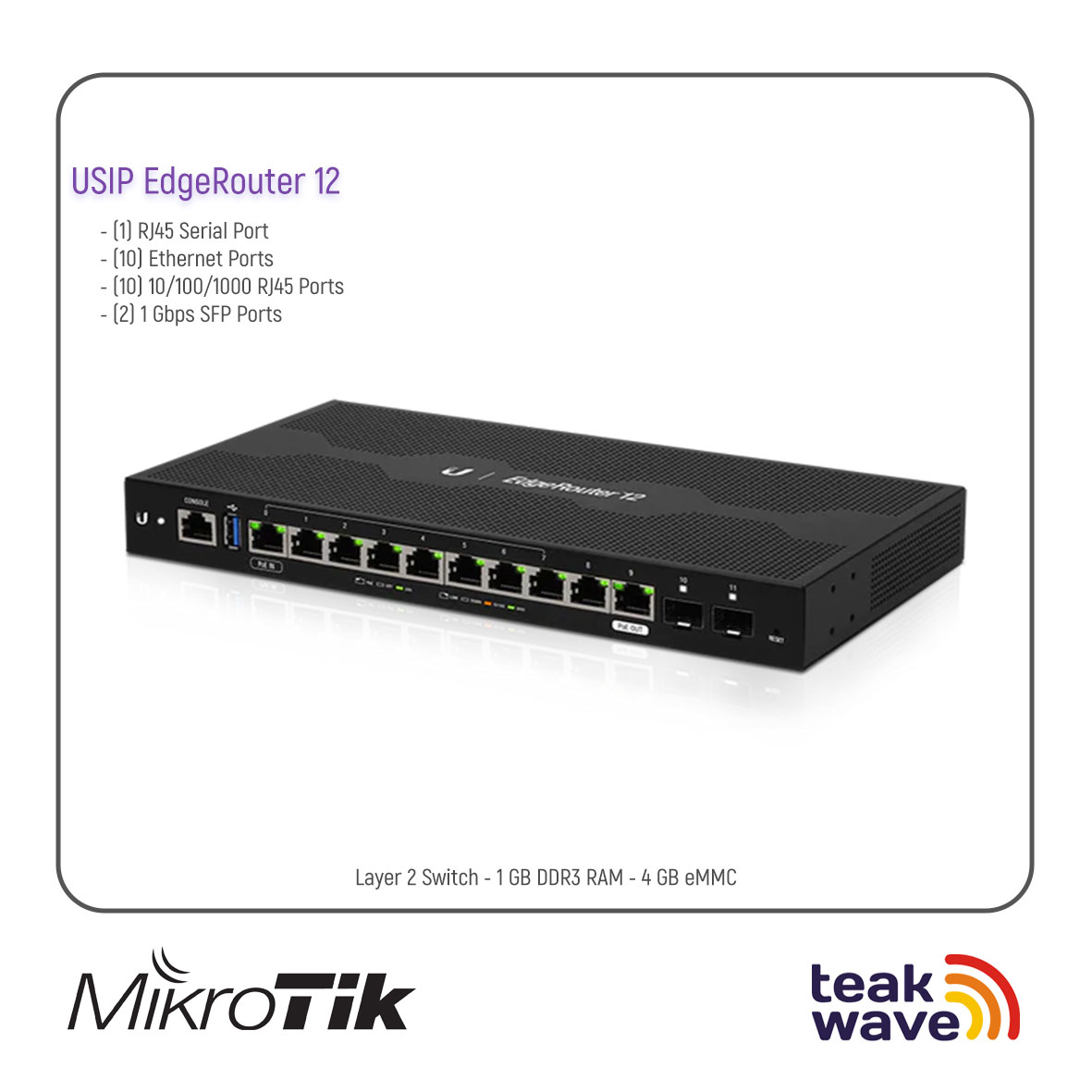

Ubiquiti ER-12 / EdgeRouter 12

EdgeRouter 12
Dimensions 268.1 x 136.5 x 31.1 mm
(10.55 x 5.37 x 1.22″)
Weight 700 g
(1.54 lb)
Max. Power Consumption 20W (Excludes PoE Output)
Power Method External AC/DC Power Adapter, 24W (24V, 1A) (Included)
24V Passive PoE
Power Supply External AC/DC Adapter
Passive PoE
Voltage Range
Max. Wattage per Port
DC/PoE Passthrough
20W (24V)
Supported Voltage Range 9 – 30VDC
Button Reset
LEDs
System
Data Ports
SFP Data Port Power
Speed/Link/Activity;PoE (Ports 0 and 9 only)
Link/Activity
Processor 4-Core 1 GHz MIPS64
System Memory 1 GB DDR3 RAM
On-Board Flash Storage 4 GB eMMC, 8 MB SPI NOR
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Interfaces
Management

Networking
(1) RJ45 Serial Port, (10) Ethernet Ports (Default Port 0)
(10) 10/100/1000 RJ45 Ports
Port 0 Supports PoE IN;
Port 9 Supports PoE Out
(2) 1 Gbps SFP Ports
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 10 – 90% Noncondensing
Certifications CE, FCC, IC
