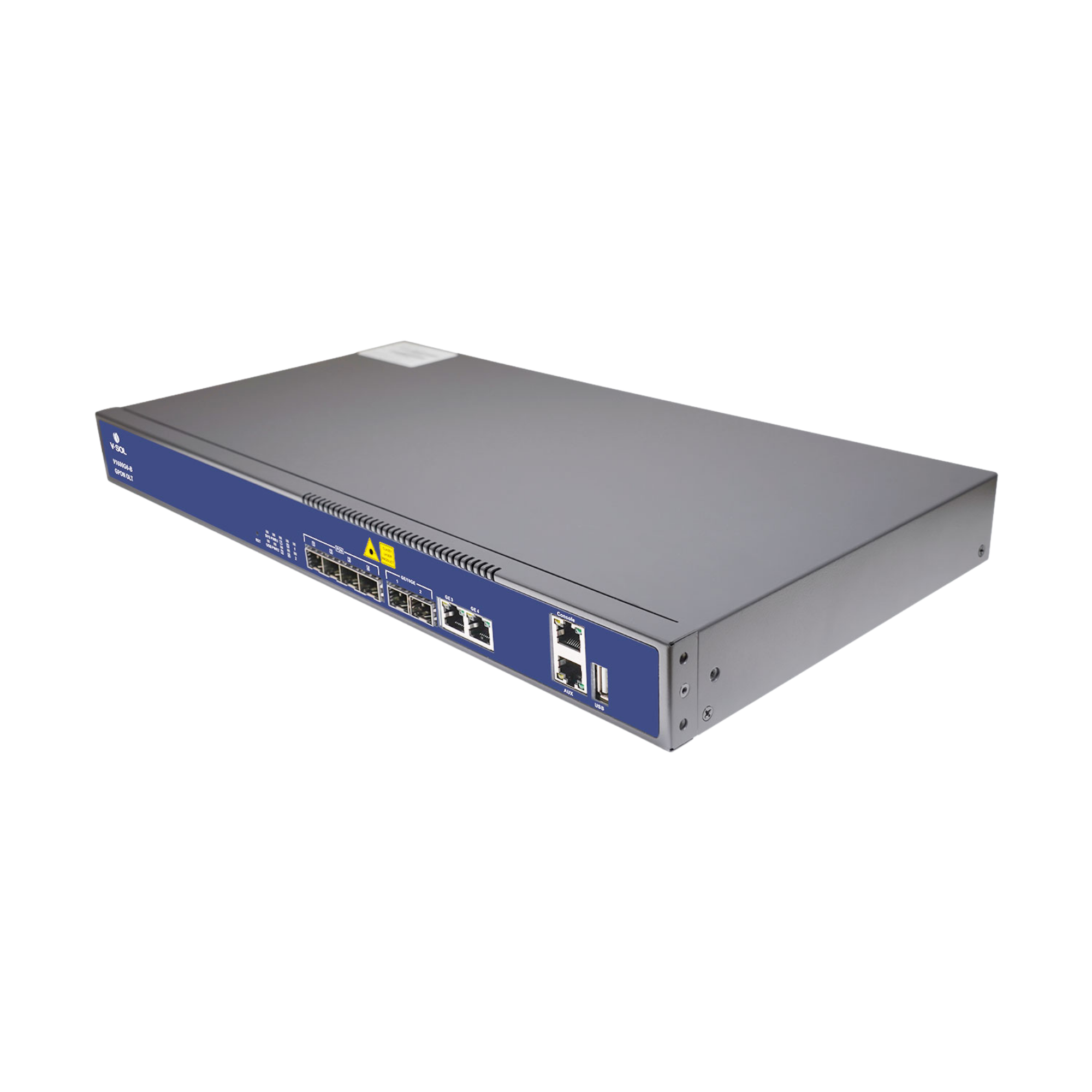

VSOL - V1600G0-B (AC+DC48V)

VSOL V1600G0-B 4Ports GPON OLT

BROADCOM CHIPSET PERFORMA LEBIH STABIL DAN OPTIMAL ! dibanding V1600G1 versi Chipset Lain : Realtekk/Ztee !!

GARANSI 12 BULAN + SERTIFIKASI POSTEL

Double Power AC+DC 48V Power | Include 4x SFP C++++ 9dB

Package Contents:

- 1unit VSOL V1600G0-B (AC+DC48V)

- 2pcs Kupingan Rackmunt + 4baut

- 4pcs Bantalan Kali Karet

- 1pcs Kabel Power C13

- 1pcs Kabel Grounding

- 1pcs Kabel DB9 to RJ45

- 4pcs SFP C++++ 9dB

Technical Specification

Item V1600G0-B

Chassis Rack 1U 19Inch Standard Box

GE/10GE Uplink Port QTY 4

RJ45(GE) 2

SFP(GE)/SFP+(10GE) 2

GPON Port Qty 4

Physical Interface SFP Slots

Connector Type Class: C++/C+++/C++++

Max splitting ratio 0,130555556

Management Ports 1*10/100/1000BASE-T out-band port, 1*CONSOLE port,

1*USB2.0

Backplane Bandwidth (Gbps) 104

Port Forwarding Rate(Mpps) 47.616

PON Port Specification (Class C+++module) Transmission Distance 20KM

GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps

Wavelength TX 1490nm, RX 1310nm

Connector SC/UPC

Fiber Type 9/125m SMF

TX Power +4.5 s/d +10dBm

Rx Sensitivity -30dBm

Saturation Optical Power -12dBm

Management Mode EMS, TR069 VACS, WEB, SNMP, Telnet , CLI

Management Function SNMP,Telnet,CLI,WEB,SSH v2;

Fan Group Control

Port Status monitoring and configuration management

Online ONTconfiguration and management

User management

Alarm management

Layer2 Switch 32K Mac address

Support 4096 VLANs

Support port VLAN and protocol VLAN

Support VLAN tag/Un-tag, VLAN transparent transmission

Support VLAN translation and QinQ

Support storm control based on port

Support port isolation

Support port rate limitation

Support 802.1D and 802.1W

Support static LACP,Dynamic LACP

QoS based on port, VID, TOS and MAC address

Access control list

IEEE802.x flowcontrol

Port stability statistic and monitoring

Multicast IGMP snooping

2048 IP Multicast Groups;

DHCP DHCP server,DHCP relay,DHCP snooping

DHCP option82

Layer 3 Route ARP proxy

4096 hardware Host Routes,512 hardware Subnet Routes

Support 802.1X,Radius,Tacacs+

Support IP source guard

Support static route ,dynamic route RIP v1/v2,RIPng and OSPF v2/v3;

IPv6 Support NDP;

Support IPv6 Ping,IPv6 Telnet,IPv6 routing;

Support ACL based on source IPv6 address,
