VSOL - V1600G2-R (AC+DC48V)

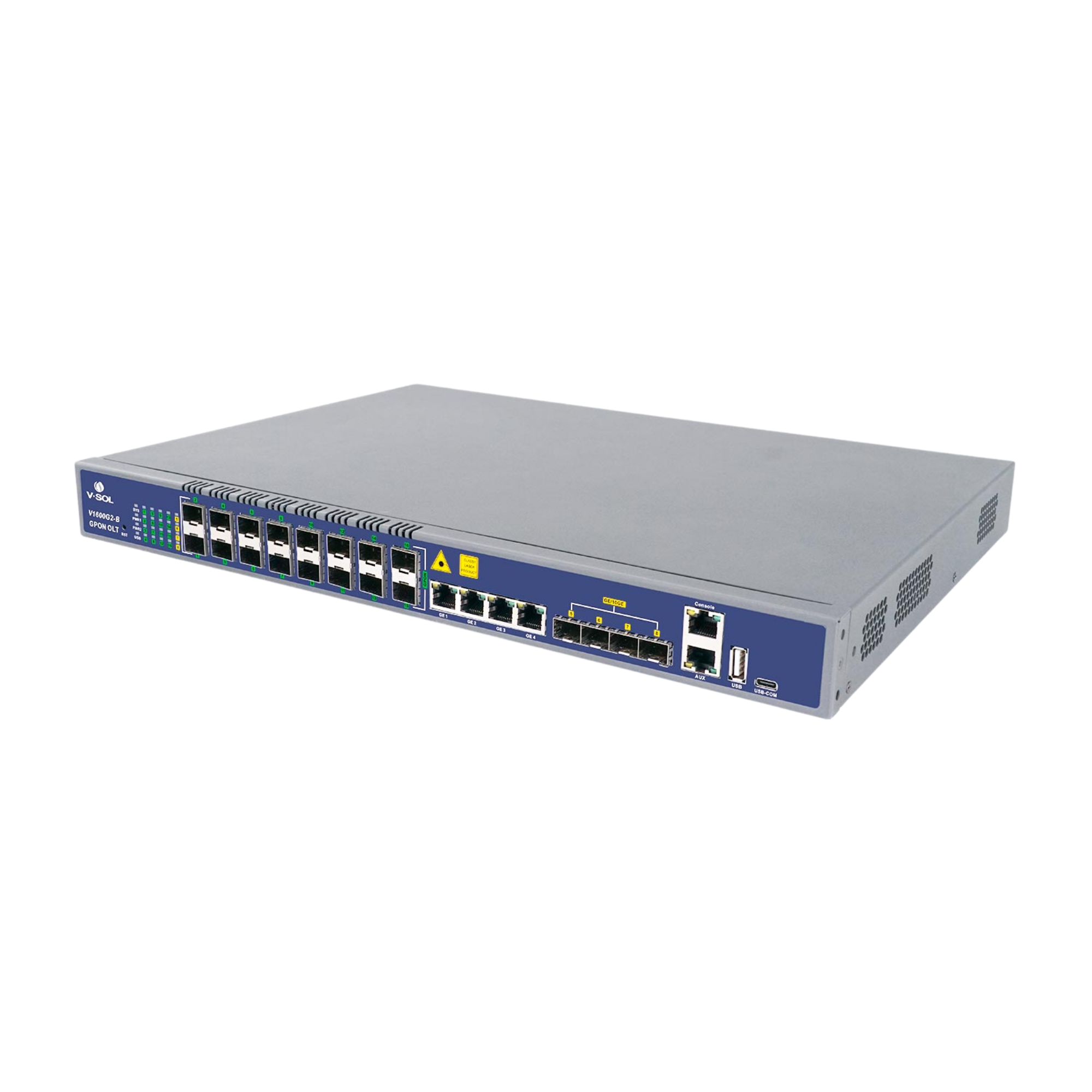

VSOL V1600G2-R 16 Ports GPON OLT

16*GPON, 4GE(RJ45) + 4*GE(SFP)/10GE(SFP+)

GARANSI Resmi 12 BULAN

#Tersedia Varian: Include SFP C++++ 9dB16pcs Atau GPON OLT saja tanpa SFP

Package Contents:

- 1unit VSOL V1600G2-R

- 2pcs Kupingan Rackmunt + 4baut

- 1pcs Kabel Power C13

- 1pcs Kabel DB9 to RJ45

- 16pcs SFP VSOL C++++ (untuk varian include)

Item V1600G2-R

Chassis Rack

1U 19Inch Standard Box

GPON Port QTY 16

Physical Interface SFP Slots

Connector Type Class (Class C++/Class C+++/Class C++++)

Max splitting ratio 1:128

Management Ports

1*10/100/1000BASE-T out-band port, 1*CONSOLE port,

1*USB2.0

Backplane Bandwidth (Gbps) 104

Port Forwarding Rate(Mpps) 65.472

PON Port Specification (Class C++++module)

Transmission Distance 20KM

GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps

Wavelength TX 1490nm, RX 1310nm

Connector SC/UPC

Fiber Type 9/125m SMF

TX Power +4.5~+10dBm

Rx Sensitivity -30dBm

Saturation Optical Power -12dBm

Management Mode EMS, TR069 VACS, WEB, SNMP, Telnet , CLI

Management Function

SNMP,Telnet,CLI,WEB,SSH v2;

Fan Group Control

Port Status monitoring and configuration management

Online ONTconfiguration and management

User management

Alarm management
